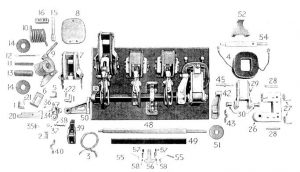

Clark/CCL D.C. Magnetic Contactor Form 100-3L3A
| Item | OEM Brake Parts | Description | US Part # | Number Required |
|---|---|---|---|---|
| 1 | A16-1936 | Contact (Main-Mov & Sta) | ||
| 2 | A77-20545 | Contact Spring | ||
| 3 | A16-8113A | Connector | ||
| 7 | A18-4950A | Arc Shield Assembly | ||
| 08a | A18-4972 | Arc Shield Side Plate, RH | ||
| 08b | A18-4973 | Arc Shield Side Plate, LH | ||
| 9 | A16-92608A | B/0 Coil Assembly | ||
| 10 | A16-31756 | B/0 Coil | ||
| 11 | A16-1947 | Blowout Core | ||
| 12 | T-120-201 | Blowout Core Stud | ||
| 13 | T-39-24 | Blowout Core Insulator | ||
| 14 | A16-1950 | Blowout Washer | ||
| 15 | A16-31758 | Blowout Stud, Back Connected | ||
| 15 | A16-31765 | Blowout Stud, Front Connected | ||
| 20 | A16-31757 | Contact Stud | ||
| 21 | T-132-21 | Contact Screw | ||
| 22 | T-121-13 | Contact Screw | ||
| 26 | A16-1929A | Magnet Core | ||
| 27 | A16-1951 | Magnet Core Mounting Angle | ||
| 28 | T-51-2 | Magnet Core Pin | ||
| 29 | A16-1930A | Magnet Arm | ||
| 30 | A16-1952 | Magnet Arm Adj Bushing | ||
| 34 | A16-18890A | Moving Contact Support | ||
| 35 | A18-5065A | Mov Contact Support Adj Screw | ||
| 36 | T-159-1 | Mov Contact Support Stop Screw | ||
| 38 | T-37-36 | Moving Cont Sup Pin | ||
| 39 | A16-31753 | Main Contact Arm | ||
| 40 | A16-1939 | Main Contact Arm Clamp | ||
| 42 | A16-1940 | Operating Arm | ||
| 43 | A16-1941 | Operating Arm Clamp | ||
| 45 | A16-1957 | Operating Stud | ||
| 48 | TB-5-2 | Shaft, 2 Pole | ||
| 48 | TB-5-3 | Shaft, 3 Pole | ||
| 49 | TB-4-2 | Shaft Insulator, 2 Pole | ||
| 49 | TB-4-3 | Shaft Insulator, 3 Pole | ||
| 50 | A16-1934 | Shaft Bearing | ||
| 51 | A16-1964 | Shaft Spacer | ||
| 52 | A16-1969 | Shading Coil, 60 Cycle | ||
| 52 | A16-1970 | Shading Coil, 25 Cycle | ||
| 54 | A16-1960 | Stop Stud, 1-1/4" Slate | ||
| 55 | A16-10263A | Stationary Tip | ||
| 56 | A16-10265A | Movable Contact | ||
| 57 | T-45-24 | Aux Contact Spring | ||
| 58 | T-5-1 | Aux Contact Spring Stud |
