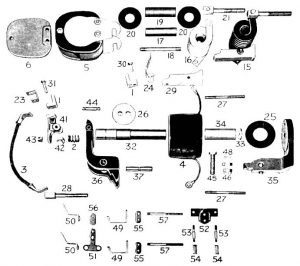

Clark/CCL D.C. Magnetic Contactor Form 400-4RT
| Item | OEM Brake Parts | Description | US Part # | Number Required |
|---|---|---|---|---|
| 1 | A18-5581 | Contact | ||
| 2 | A18-5597 | Contact Spring-Back Connected | ||
| 3 | A18-5558A | Connector | ||
| 5 | A18-22028A | Arc Shield, Assembly | ||
| 6 | A18-21378 | Arc Shield Side Plate | ||
| 7 | T-38-65 | Arc Shield Washer | ||
| 8 | T-7-99 | Arc Shield Stud | ||
| 9 | T-120-188 | Arc Shield Stud | ||
| 10 | A18-22004 | Arc Barrier, Front | ||
| 11 | A18-5571 | Arc Barrier, Rear | ||
| 13 | A18-5573 | Blowout Ear, R.H | ||
| 14 | A18-5574 | Blowout Ear, L.H | ||
| 15 | A18-23693A | Blowout Coil, Assembly | ||
| 16 | A18-23694 | Blowout Coil | ||
| 17 | T-24-170 | Blowout Core | ||
| 18 | T-7-101 | Blowout Core Stud | ||
| 19 | T-39-146 | Blowout Core Insulator | ||
| 20 | T-38-56 | Blowout Washer | ||
| 21 | A18-23695 | Blowout Stud | ||
| 22 | A18-23697 | Blowout Spacer | ||
| 23 | A18-5583 | Arc Horn, Front | ||
| 24 | A18-152938 | Arc Horn, Rear | ||
| 25 | A18-22649 | Coil Washer | ||
| 26 | A18-5587 | Coil Clamp | ||
| 27 | T-7-47 | Coil Terminal Stud | ||
| 27 | T-7-199 | Coil Terminal Stud | ||
| 28 | A18-5593 | Connector Stud | ||
| 28 | A18-24376 | Connector Stud | ||
| 29 | A18-23696 | Contact Stud | ||
| 30 | T-104-3 | Contact Screw | ||
| 31 | T-104-1 | Contact Screw | ||
| 33 | T-2-50 | Core Washer | ||
| 34 | T-24-78 | Core Spacer | ||
| 35 | A18-25490A | Frame | ||
| 36 | A18-25351A | Main Arm Assembly | ||
| 37 | T-66-4 | Main Arm Pin | ||
| 38 | A18-9474-6 | Main Arm Bushing, Upper | ||
| 39 | A18-9474-12 | Main Arm Bushing, Lower | ||
| 40 | T-40-24 | Main Arm Bushing, Lower, Brass | ||
| 41 | A18-9464A | Auxiliary Contact Bar, Moveable | ||
| 41 | A18-26294A | Main Contact Support-Back Conn | ||
| 42 | A18-5594A | Mov Contact Support Adj Screw | ||
| 43 | T-115-32 | Mov Contact Support Lock Nut | ||
| 44 | A18-24297 | Moving Contact Support Pin | ||
| 45 | A18-3519 | Stop Stud | ||
| 45 | A18-3520 | Stop Stud Nut | ||
| 47 | T-3-17 | Stop Stud Pin | ||
| 48 | T-2-30 | Stop Stud Washer | ||
| 49 | A18-13823A | Contact | ||
| 50 | A18-13824A | Aux Contact | ||
| 52 | A18-5586 | Aux Contact Insulator | ||
| 53 | A18-9477 | Aux Contact Stud | ||
| 54 | A18-9483 | Spring | ||
| 55 | A18-2543 | Aux Contact Base Plate | ||
| 56 | A18-2542 | Aux Contact Plate | ||
| 57 | T-7-36 | Aux Stud | ||
| 57 | T-7-150 | Aux Stud |
