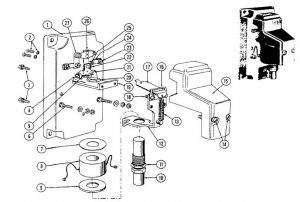

Clark/CCL Type XVR Relay
| Item | OEM Brake Parts | Description | US Part # | Number Required |
|---|---|---|---|---|
| * | A73-260932-230 | TYPE 7328, XVRRelay | ||
| 1 | A73-260367 | Mounting Base | ||
| 2 | T-155-10 | Spring Lockwasher | ||
| 2 | T-120-152 | 10-32X3/4" Screw | ||
| 3 | T-135-3 | Pre-Assem Screw | ||
| 4 | A73-259774 | Arm Bracket Pin | ||
| 5 | A29-4592 | Contact Arm Spring | ||
| 6 | T-155-10 | Spring Lockwasher | ||
| 6 | T-120-135 | Brass Screw | ||
| 6 | T-115-18 | Brass Nut | ||
| 6 | T-2-287 | #6 Black Burr | ||
| 6 | T-2-27 | Brass Washer | ||
| 7 | T-38-22 | Coil Spacer (top) | ||
| 8 | TB-118-3 | Coil | ||
| 8 | TB-118-5 | 115 Volt Coil | ||
| 9 | T-38-59 | Coil Spacer (bottom) | ||
| 10 | A29-226286A | Adjusting Plug | ||
| 12 | A29-35745A | Assembled Frame | ||
| 13 | A29-4610 | Spring (Red) | ||
| 14 | T-155-11 | Thin Spring Lockwasher | ||
| 14 | T-132-22 | Screw | ||
| 15 | B73-260940 | Cover | ||
| 16 | A73-38666 | Retaining Clamp | ||
| 17 | A73-255674A | Assembled Operating Arm | ||
| 18 | T-155-10 | Spring Lockwasher | ||
| 18 | T-120-105 | Screw | ||
| 19 | A73-259773A | Bracket | ||
| 20 | A29-30345 | Solenoid Plug | ||
| 21 | A29-30344 | Contact Arm Bracket | ||
| 22 | T-155-11 | Thin Spring Lockwasher | ||
| 22 | T-2-27 | Brass Washer | ||
| 22 | T-12-6 | Arm Stop Stud | ||
| 22 | T-155-7 | #8 Lock Washer | ||
| 22 | T-115-11 | Brass Nut | ||
| 23 | A77-166052 | Pressure Terminal | ||
| 24 | A73-257347 | Terminal Plate | ||
| 25 | E12501 | Terminal Nut | ||
| 25 | T-155-9 | 3/16" Lock Washer | ||
| 26 | A29-4414A | Assm Front Movable Contact | ||
| 27 | A29-4412A | Contact |
