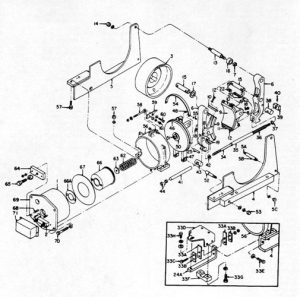

G.E. GE 23″ A105 IC9528 Brake
| Item | OEM Brake Parts | Description | US Part # | Number Required |
|---|---|---|---|---|
| * | 282A888P1 | Spring Seat | ||
| 1 | 1D181G100 | Coil | ||
| 1 | 1D181G113 | Coil | ||
| 1 | 1D181G114 | Coil | ||
| 1 | 1D181G108 | Coil | ||
| 1 | 1D181G001 | Coil | ||
| 1 | 1D181G111 | Coil | ||
| 1 | 1D181G105 | Coil | ||
| 1 | 1D181G101 | Coil | ||
| 1 | 1D181g102 | Coil | ||
| 1 | 1D181G103 | Coil | ||
| 1 | 1D181G104 | Coil | ||
| 1 | 1D181G107 | Coil | ||
| 1 | 1D181G109 | Coil | ||
| 1 | 1D181G110 | Coil | ||
| 1 | 1D181G112 | Coil | ||
| 1 | 1D181G106 | Coil | ||
| 4 | 171C230G15 | Frame Front | ||
| 5 | 171C230G16 | Frame Rear | ||
| 05A¾ | 282A872P6 | Tie Stud | ||
| 05B | 229B790P12 | Spacer for Tie Stud | ||
| 6 | 171C266G24 | Yoke with Bushings | ||
| 7 | 573A608P9 | Bushing for Yoke | ||
| 8 | 171C223P1 | Brake Shoe | ||
| 9 | 305A4800P6 | Lining & Support Plate | ||
| 10 | 282A875P12 | Clamp for Lining | ||
| 11 | 282A875P6 | Clamp for Lining | ||
| 12 | N93P33024 | Screw | ||
| 13 | 287A121P6 | Bearing Pin for RH Yoke | ||
| 14 | N200P45 | Nut for Bearing Pin | ||
| 15 | 287A122P6 | Bearign Pin for LH Yoke | ||
| 16 | 282A763P5 | Seal | ||
| 17 | 282A770P11 | Thrust Washer | ||
| 18 | 577A124P4 | Set Screw for Brake Shoe | ||
| 19 | 282A862P6 | Friction Plug for Brake Shoe | ||
| 20 | 5144464P1 | Spring for Friction Plug | ||
| 20 | 2418884P1 | Spring for Firction Plug | ||
| 21 | 282A869P7 | Guide Pin for Spring | ||
| 22 | N908P237B | Retain Ring for Friction Plug | ||
| 24A | 138A1173P6 | Pivot Arm for Yoke | ||
| 25 | 287A120P6 | Pivot Pin for Yoke | ||
| 33A | 138A1174P6 | Spring Strip for Pivot Arm | ||
| 33B | 138A1178P6 | Backing Strip | ||
| 33C | N22P29036B6 | Screw Fastening Spring Strip | ||
| 33D | 104B9965P6 | Support for Pivot Arm | ||
| 33E | N21P33024 | Screw | ||
| 33F | 138A1175P6 | Guide for Pivot Arm | ||
| 33G | N21P33032 | Adjustable Screw for Pivot Arm | ||
| 33H | N21P325028 | Adjusting Screw | ||
| 34 | 104B9964P6 | Tie Rod | ||
| 35 | 138A1177G1 | Spacer for Tie Rod | ||
| 36 | 5144473P1 | Compression Spring | ||
| 37 | 285A820P1 | Spring Seat | ||
| 38 | 285A839P6 | Rocker Pin | ||
| 39 | 233B565P5 | Nut for Tie Rod | ||
| 40 | N72P2310B6 | Set Screw¾¾ | ||
| 41 | 577A129P12 | Tube | ||
| 42 | 285A820P1 | Spring Seat | ||
| 43 | 287A125P6 | Stainless Steel Rocker Pin | ||
| 43 | 138A1191P6 | Stainless Steel Rocker Pin | ||
| 43 | 138A1176P6 | Rocker Pin | ||
| 44 | N227P43 | Tie Rod Nut | ||
| 46 | 229B796G6 | Armature with¾Bushings | ||
| 47 | 573A608P10 | Bushing¾for Armature | ||
| 48 | 577A124P4 | Set Screw for Armature | ||
| 50 | 282A879P1 | Spring Seat | ||
| 51 | N21P29032 | Screw | ||
| 52 | 287A123P1 | Bearing Pin¾¾ | ||
| 53 | N206P45B | Nut for Bearing Pin | ||
| 53 | N200P45 | Nut for Bearing Pin | ||
| 54 | 282A775P6 | Dust Cap | ||
| 55 | N57P21008B | Screw | ||
| 56 | 111C9021P1 | Magnet Frame | ||
| 57 | 577A190P13 | Screw | ||
| 58 | 282A867P3 | manual-Release Rod | ||
| 59 | 282A760P1 | Armature Gap Indicator | ||
| 60 | N22P39064B6 | Hinge Screw | ||
| 61 | N530P1008B6 | Drive Screw | ||
| 62 | 5144457P1 | Spring, Outer | ||
| 62 | 5144458P1 | Torque Spring, Inner | ||
| 62 | 5144457P1 | Torque Spring, Outer | ||
| 64 | 282A755P1 | Retainer | ||
| 65 | 282A768P6 | Adjusting Screw | ||
| 66 | 978B347P4 | Magnet Core | ||
| 66A | 282A852P4 | Shim | ||
| 67 | 138A2586P2 | Retainer for Magnet Coil | ||
| 68 | 282A861P5 | Stud for Magnet Core | ||
| 69 | 394B590P1 | Back Plate, Inner | ||
| 69 | 394B563P1 | Back Plate, Outer | ||
| 70 | N93P39096 | Screw | ||
| 71 | 218A6420G5 | Conduit Cover |
